3 system control interface design
3.1 Automatic screen
Select Auto mode from the panel button to enter the auto screen. Press the up/down page key in the automatic screen to adjust the G01 feedrate override.
PAGE

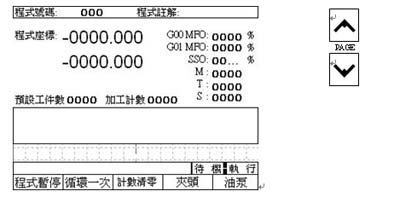

Introduction to the auxiliary function keys under the automatic screen:
Program pause: When the highlight is clicked, the program pauses execution, and then clicks the highlight disappear program to continue.
Cycle once: When the program is executed in reverse rotation, the workpiece will not be executed once. If the program is not reversed, the workpiece will not be stopped after the program is started.
The count is cleared: the hold count is cleared for 1 second.
Chuck: chuck tightening / loosening
Oil pump: oil pump on/off
3.2 Manual screen
Select manual mode from the panel to enter the manual screen.
Press the up, down, left and right buttons on the manual screen to control the XY two-axis positive and negative direction feed.
You can adjust G01 and manual feedrate override by pressing the up/down page key in the manual screen.
PAGE
CURSOR
The auxiliary function keys under the manual screen are introduced:
Jog test: Press to enter the output point test screen.
Tool setting: Press to enter the tool setting screen.
Program Settings: Click to enter the program selection screen.
Previous page next page
